| 說明 | Description |
Unit
|
ARES 150-S+
|
||
|
A
|
B
|
C
|
|||
| 射膠系統 | Injection Unit | ||||
| 螺桿直徑 | Screw diameter |
mm
|
35
|
40
|
45
|
| 螺桿長徑比 | Screw L/D ratio |
—
|
24
|
21
|
18.7
|
| 理論射膠容積 | Theoretical shot volume |
cm3
|
212
|
276
|
350
|
| 射膠量(PS) | Shot weight (PS) |
g
|
195
|
254
|
322
|
| 射膠壓力 | lnjection pressure |
MPa
|
243
|
186
|
147
|
| 注射速率 | Injection rate |
g/s
|
96
|
125
|
158
|
| 螺桿行程 | Screw stroke |
mm
|
220
|
||
| 螺桿轉速 | Screw speed |
rpm
|
200
|
||
| 鎖模系統 | Clamping Unit | ||||
| 鎖模力 | Clamping force |
kN
|
1500
|
||
| 推力座行程 | Opening stroke |
mm
|
410
|
||

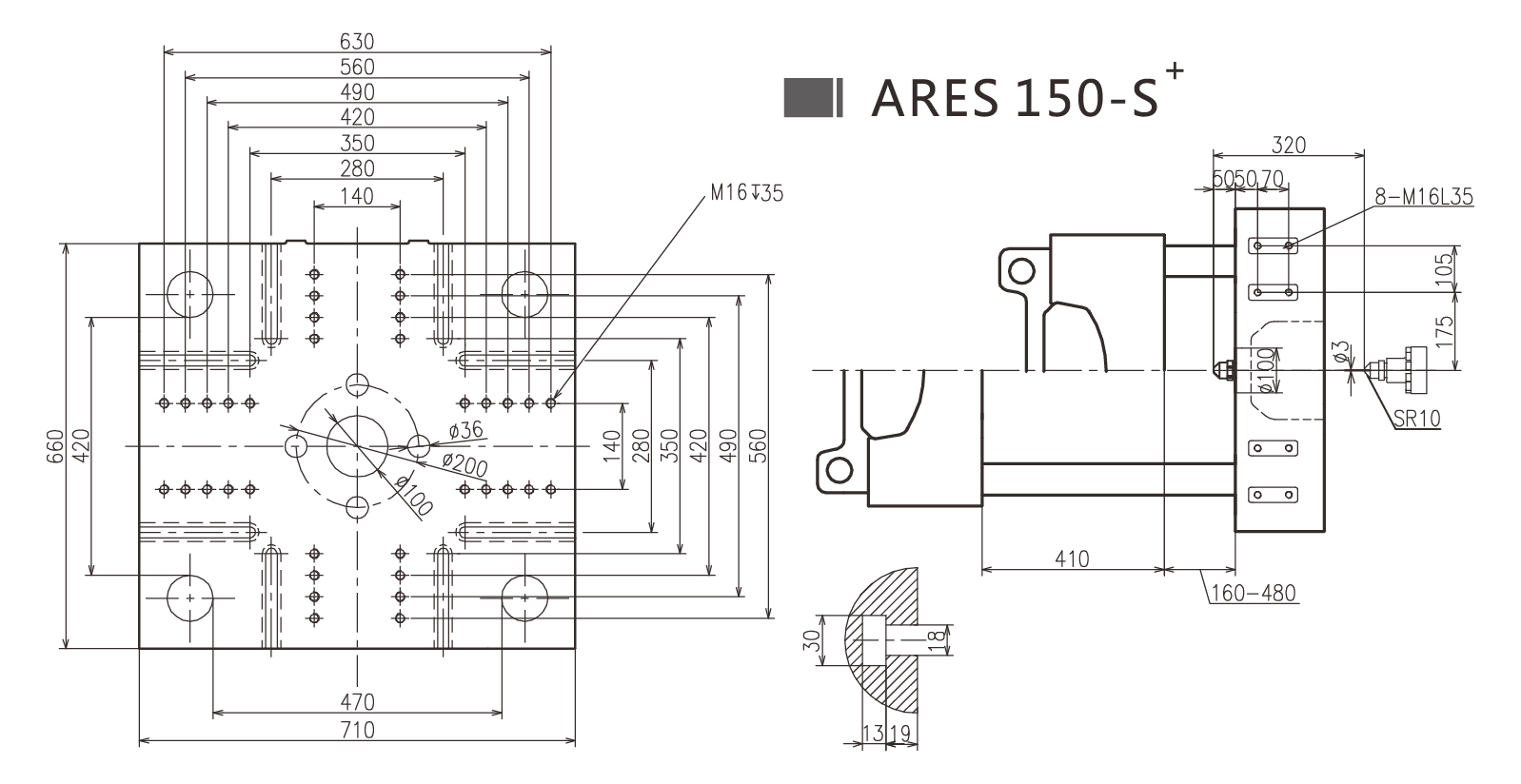

| 導柱內距(水平×垂直) | Space between tie bars (HxV) |
mm
|
470 x 420
|
||
| 模板最大距離 | Max. daylight |
mm
|
890
|
||
| 最薄-最厚 | Mold thickness (Min-Max) |
mm
|
160 – 480
|
||
| 頂針行程 | Ejector stroke |
mm
|
140
|
||
| 頂針推力 | Ejector force |
kN
|
41
|
||
| 頂針桿根數 | Ejector number |
pcs
|
5
|
||
| 動力/電熱 | Power/heating unit | ||||
| 系統壓力 | System pressure |
MPa
|
17.5
|
||
| 伺服電機功率 | Motor pump capacity |
kW
|
17
|
||
| 電熱功率 | Heating capacity |
kW
|
10
|
||
| 溫度控制區數 | Number of temperature control zones |
—
|
3 + Nozzle
|
||
| 其它 | Others | ||||
| 料斗容積 | Hopper capacity |
L
|
25
|
||
| 油箱容量 | Oil tank capacity |
L
|
250
|
||
| 機身尺寸(長×寬×高) | Machine dimensions (L×W×H) |
m
|
5.1 x 1.37 x 1.8
|
||
| 機重 | Machine weight |
T
|
5.3
|
||
